OPS-M

OVERVIEW

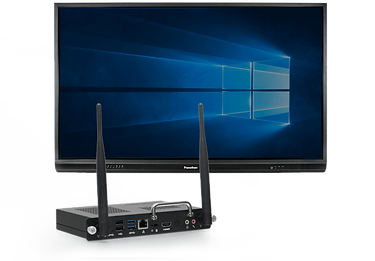

The OPS-M is a Windows® Module for schools using the Microsoft® ecosystem and creates an all-in-one, large format Windows experience on the ActivPanel and ActivPanel i-Series.

​

Interactive Display Compatibility

ActivPanel & ActivPanel i-Series

​

Device Type
Open Pluggable Specification (OPS)

​

Operating System

Windows 10 IoT Optional

​

CPU

Intel i5-6200U (Up to 2.8 GHz)

​

Memory
8 GB DDR4

​

Storage
256 GB SSD

​

GPU

Intel® HD Graphics 520 (4K @ 60 Hz)

​

Wi-Fi™ (802.11ac) & Bluetooth™
Yes

​

Software

N/A

ActivConnect OPS-G

OVERVIEW
The ActivConnect OPS-G is an Android™  Module that creates a tablet-like experience on the ActivPanel and ActivPanel i-Series.

​

Interactive Display Compatibility
ActivPanel (included with the ActivPanel 2018 purchase) & ActivPanel i-Series

​

Device Type
Open Pluggable Specification (OPS)

​

Operating System
Android 6.0

​

CPU
Realtek RTD1295 (Up to 1.4 GHz)

​

Memory
2 GB DDR4

​

Storage
16 GB EMMC

​

GPU
ARM Mali T820 (4K @ 60 Hz)

​

Wi-Fi™ (802.11ac) & Bluetooth™
Yes

​

Software
Apps, app store, web browser, whiteboarding, ClassFlow Software.

​

ActivCast mirroring downloads available from the Support website.

ActivConnect G

OVERVIEW

The ActivConnect G is an external Android Module that creates a tablet-like experience on the ActivPanel, ActivPanel i-Series, and ActivBoard.

​

Interactive Display Compatibility

ActivPanel, ActivPanel i-Series, & ActivBoard Touch

​

Device Type

External Android Module

​

Operating System
Android 5.1 (Android 6.0 update available. Please visit Support Article 1556)

​

CPU

Rockchip RK3368 (Up to 1.5GHz)

​

Memory
2 GB DDR3

​

Storage
16 GB EMMC

​

GPU

SGX6110 (4K @ 30 Hz)

​

Wi-Fi™ (802.11ac) & Bluetooth™
Yes

​

Software

Apps, app store, web browser, whiteboarding, ClassFlow Software

​

ActivCast mirroring downloads available from the Support website.

Multi-Device Compatibility

Attendees in today’s meetings encounter a variety of different devices, including computers, tablets, smartphones and flat panel displays.

The presence of many different technologies increases the need to make it simple to collaborate!

ActivConnect makes it simple to view and share information from one device to another without having to connect multiple cables and install software.
